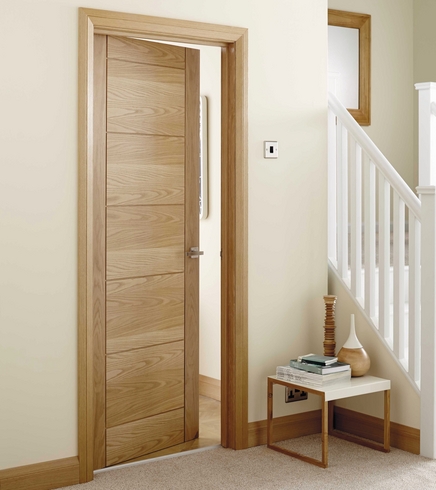

FLUSH DOORS
Neem Gold ISI Marked Flush Door have excellent properties in durability and dimensional stability. Various reputed buildings through out India have these doors that is an that is an evidence of our commitment.
Face Veneers & Cross – Bands are made from selected wood uniformity dried to optimum moisture. Kiln seasoned stiles and rails are preservative treated to improve its natural durability. Superior grade phenol formaldehyde resin provides 100% boiling water resistant bonding.
Like all our products, each is finished to perfection to provide long lasting, dependable performance. Regular tests are carried out as per IS 2202 for confirming our unbeatable quality.
Thickness: 30mm, 32mm, 35mm, 38mm, 40mm
SIZES(in Mtrs.): 81X27, 81X30, 81X32, 81X33, 81X36, 81X38
(Specific thickness and Sizes may be provided against specific order.)
TECHNOCAL SPECIFICATION
MR/BWR Grad Flush Door IS:2202 [ Part-1 ]
| SI.No | Test | Requirement of IS 2202 | Test Results |
|---|---|---|---|
| 1 | Impact identation Edge loading Test |
<0.2m Max.Deflection -<0.5mm Residual Deflection -<0.5mm |
Max.Deflection -<3.0 Residual Deflection -<3.0mm |
| 2 | Shock Resistance Test | Lateral Buckling -<2.0mm Should withstand 5 impacts |
Lateral Buckling -<1.0mm can withstand 15 impacts |
| 3 | Misuse Test | Pass | Excellent |
| 4 | End Immersion Test | No declamation in one cycle. | Can undergo three cycles without any declamation |
| 5 | Knife / Glue Adhesion - Test | Excellent | |
| 6 | Screw Withdrawal Resistance > | 1000 N > 1500 N |
Note: The above result are based on the test standards
